How to Attach Grips

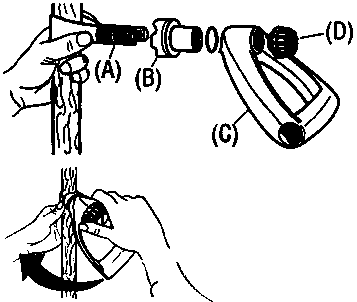

D-grip Attaching Instructions:

  • Wrap split screw strap (A) around shaft of tool.
  • Slide saddle (B) onto split screw strap with indentations matching shaft of tool.
  • Slide grip (C) with rubber ring onto strap assembly.
  • Screw on nut (D) as far as possible ensuring threads of split screw are correctly aligned.
  • To tighten, turn grip with nut.

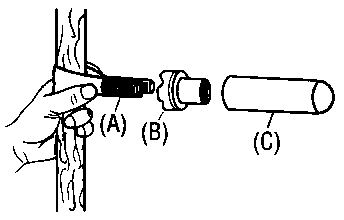

T-grip Attaching Instructions:

  • Wrap split screw strap (A) around shaft of tool.
  • Slide saddle (B) onto split screw strap with indentations matching shaft of tool.
  • Slide grip (C) onto strap assembly.
  • To tighten, screw on grip.
